GtkImageToolSelector

GtkImageToolSelector — Image tool for selecting rectangular regions

Screenshot showing a GtkImageToolSelector with an active selection on a GtkImageView

Object Hierarchy

  GObject
   +----GtkImageToolSelector

Implemented Interfaces

GtkImageToolSelector implements GtkIImageTool.

Properties

  "view"                     GtkImageView*         : Write / Construct Only

Signals

  "selection-changed"                              : Run Last

Description

GtkImageToolSelector is a tool for selecting areas of an image. It is useful for cropping an image, for example. The tool is an implementor of the GtkIImageTool inteface which means that it can be plugged into a GtkImageView by using the gtk_image_view_set_tool() method.

GtkImageToolSelector changes the default display of the GtkImageView. It darkens down the unselected region of the image which provides a nice effect and makes it clearer what part of the image that is currently selected. Unfortunately, this effect is somewhat incompatible with how GtkImageNav behaves because that widget will show the image without darkening it.

The tool also changes the default behaviour of the mouse. When a GtkImageToolSelector is set on a GtkImageView, mouse presses do not "grab" the image and you cannot scroll by dragging. Instead mouse presses and dragging is used to resize and move the selection rectangle. When the mouse drags the selection rectangle to the border of the widget, the view autoscrolls which is a convenient way for a user to position the selection.

Please note that GtkImageToolSelector draws the image in two layers. One darkened and the selection rectangle in normal luminosity. Because it uses two draw operations instead one one like GtkImageToolDragger does, it is significantly slower than that tool. Therefore, it makes sense for a user of this library to set the interpolation to GDK_INTERP_NEAREST when using this tool to ensure that performance is acceptable to the users of the program.

Zoom bug

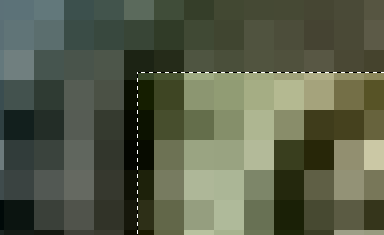

There is a small bug in GtkImageToolSelector that becomes apparent when the zoom factor is greater than about 30. The edge of the selection rectangle may in that case intersect a pixel:

The selection rectangle intersects the border pixel

The bug is caused by bug 389832 in gdk-pixbuf. There is no way to solve this bug on GtkImageView's level (but if someone knows how, I'd really like to know).

Details

enum HotspotType

typedef enum
{
    HOTSPOT_INSIDE = 0,
    HOTSPOT_RESIZE_NORTH_WEST,
    HOTSPOT_RESIZE_NORTH_EAST,
    HOTSPOT_RESIZE_SOUTH_WEST,
    HOTSPOT_RESIZE_SOUTH_EAST,
    HOTSPOT_RESIZE_NORTH,
    HOTSPOT_RESIZE_EAST,
    HOTSPOT_RESIZE_SOUTH,
    HOTSPOT_RESIZE_WEST,
    HOTSPOT_OUTSIDE,
    HOTSPOT_LAST
} HotspotType;


GtkImageToolSelector

typedef struct _GtkImageToolSelector GtkImageToolSelector;


gtk_image_tool_selector_new ()

GtkIImageTool *     gtk_image_tool_selector_new         (GtkImageView *view);

Creates a new selector tool for the specified view with default values. The default values are:

  • selection : (0, 0) - [0, 0]

view :

a GtkImageView

Returns :

a new GtkImageToolSelector

gtk_image_tool_selector_get_selection ()

void                gtk_image_tool_selector_get_selection
                                                        (GtkImageToolSelector *selector,
                                                         GdkRectangle *rect);

Fills in rect with the current selection rectangle. If either the width or the height of rect is zero, then nothing is selected and the selection should be considered inactive. See "selection-changed" for an example.

selector :

a GtkImageToolSelector

rect :

a GdkRectangle to fill in with the current selection rectangle.

gtk_image_tool_selector_set_selection ()

void                gtk_image_tool_selector_set_selection
                                                        (GtkImageToolSelector *selector,
                                                         GdkRectangle *rect);

Sets the selection rectangle for the tool. Setting this attribute will cause the widget to immediately repaint itself if its view is realized.

This method does nothing under the following circumstances:

  • If the views pixbuf is NULL.
  • If rect is wider or taller than the size of the pixbuf
  • If rect equals the current selection rectangle.

If the selection falls outside the pixbufs area, its position is moved so that it is within the pixbuf.

Calling this method causes the ::selection-changed signal to be emitted.

The default selection is (0,0) - [0,0].

selector :

a GtkImageToolSelector

rect :

Selection rectangle in image space coordinates.

Property Details

The "view" property

  "view"                     GtkImageView*         : Write / Construct Only

Image View to navigate.

Signal Details

The "selection-changed" signal

void                user_function                      (GtkImageToolSelector *selector,
                                                        gpointer              user_data)      : Run Last

The ::selection-changed signal is emitted when the selection rectangle on the selector is moved or resized. It is inteded to be used by applications that wants to print status information. For example:

    static void
    sel_changed_cb (GtkImageToolSelector *selector)
    {
        GdkRectangle sel;
        gtk_image_tool_selector_get_selection (selector, &sel);
        if (!sel.width || !sel.height)
            printf ("No selection\n");
        else
            printf ("The selection is %d, %d - %d, %d\n",
                    sel.x, sel.y, sel.width, sel.height);
    }
    ...
    // selector is an already initialized GtkImageToolSelector
    // object.
    g_signal_connect (G_OBJECT(selector), "selection_changed",
                      G_CALLBACK (sel_changed_cb), NULL);


selector :

the selector that emitted the signal.

user_data :

user data set when the signal handler was connected.
