GtkColorSelectionDialog

GtkColorSelectionDialog — A standard dialog box for selecting a color

Object Hierarchy

  GObject
   +----GInitiallyUnowned
         +----GtkObject
               +----GtkWidget
                     +----GtkContainer
                           +----GtkBin
                                 +----GtkWindow
                                       +----GtkDialog
                                             +----GtkColorSelectionDialog

Implemented Interfaces

GtkColorSelectionDialog implements AtkImplementorIface and GtkBuildable.

Properties

  "cancel-button"            GtkWidget*            : Read
  "color-selection"          GtkWidget*            : Read
  "help-button"              GtkWidget*            : Read
  "ok-button"                GtkWidget*            : Read

Description

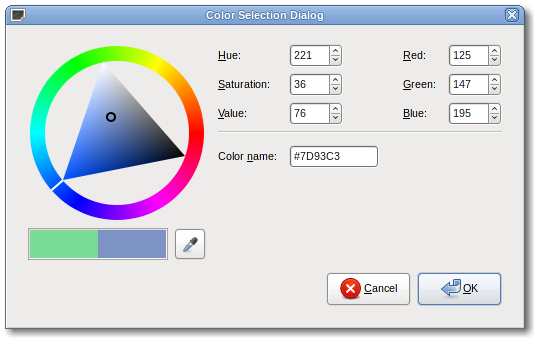

The GtkColorSelectionDialog provides a standard dialog which allows the user to select a color much like the GtkFileSelection provides a standard dialog for file selection.

GtkColorSelectionDialog as GtkBuildable

The GtkColorSelectionDialog implementation of the GtkBuildable interface exposes the embedded GtkColorSelection as internal child with the name "color_selection". It also exposes the buttons with the names "ok_button", "cancel_button" and "help_button".

Details

GtkColorSelectionDialog

typedef struct _GtkColorSelectionDialog GtkColorSelectionDialog;

The GtkColorSelectionDialog struct contains the following fields. (These fields should be considered read-only. They should never be set by an application.)

GtkWidget *colorsel; The GtkColorSelection widget contained within the dialog. Use this widget and its gtk_color_selection_get_current_color() function to gain access to the selected color. Connect a handler for this widget's color_changed signal to be notified when the color changes.
GtkWidget *ok_button; The OK button widget contained within the dialog. Connect a handler for the clicked event.
GtkWidget *cancel_button; The cancel button widget contained within the dialog. Connect a handler for the clicked event.
GtkWidget *help_button; The help button widget contained within the dialog. Connect a handler for the clicked event.


gtk_color_selection_dialog_new ()

GtkWidget*          gtk_color_selection_dialog_new      (const gchar *title);

Creates a new GtkColorSelectionDialog.

title :

a string containing the title text for the dialog.

Returns :

a GtkColorSelectionDialog.

gtk_color_selection_dialog_get_color_selection ()

GtkWidget*          gtk_color_selection_dialog_get_color_selection
                                                        (GtkColorSelectionDialog *colorsel);

Retrieves the GtkColorSelection widget embedded in the dialog.

colorsel :

a GtkColorSelectionDialog

Returns :

the embedded GtkColorSelection

Since 2.14

Property Details

The "cancel-button" property

  "cancel-button"            GtkWidget*            : Read

The cancel button of the dialog.


The "color-selection" property

  "color-selection"          GtkWidget*            : Read

The color selection embedded in the dialog.


The "help-button" property

  "help-button"              GtkWidget*            : Read

The help button of the dialog.


The "ok-button" property

  "ok-button"                GtkWidget*            : Read

The OK button of the dialog.
